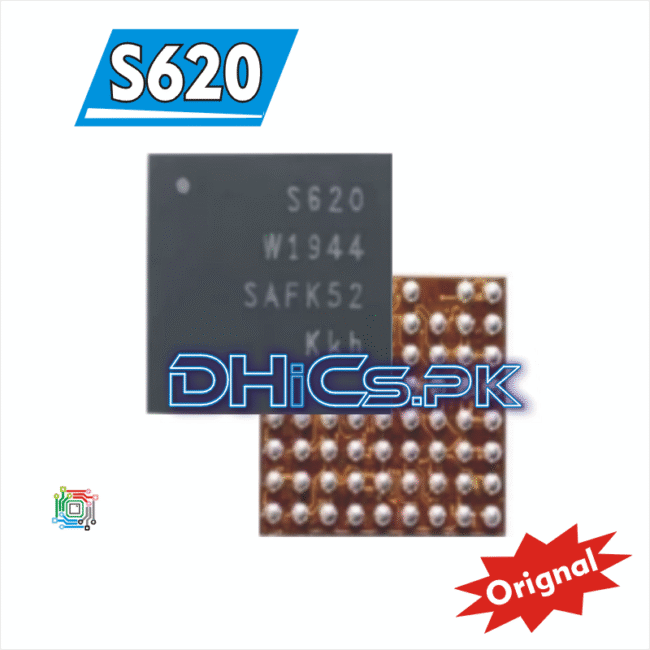

S620 Original New Wifi iC A505F A405F A507FN A515F

S620 Original New Wifi iC For Samsung A505F A405F A507FN A515F
Samsung A505F Wifi not working solution iC S620
Samsung A405F Wifi not working solution iC S620
Samsung A507FN Wifi not working solution iC S620
Samsung A515F Wifi not working solution iC S620

Replace or repairing procedure of S620 Wifi iC
Here is a full procedure to replace or repair in easy and best way.

1. Diagnose carefully that your faulty mobile actually in iC fault.

2. And there is no other solution, only replacement of iC chip is a solution.

3. Cover the whole mother board with high intensity heat insulation tape. Grip the board in board catcher normal tight.

4. Apply good quality flux paste on iC chip you want to remove.

5. Apply heat with heat gun or heat station. Do not exceed the heat above 350 degree centigrade.

6. Remove the iC chip when it starting move or slip from its original place.

7. Clean the mother board iC pad with soldering wiCk and with soldering flux.

8. Apply little flux on mother board iC pad.

9. Put original iC bought from DHiCs.PK

10. Apply heat 300 to 350 degree centigrade according to your heat station brand.

11. Heating time one minute to one minute 30 second.

12. After the iC chip is pasted, net cool the mother board about 3 to 5 minutes.

13. Now everything is done. You can fix the mother board and turn on mobile.
