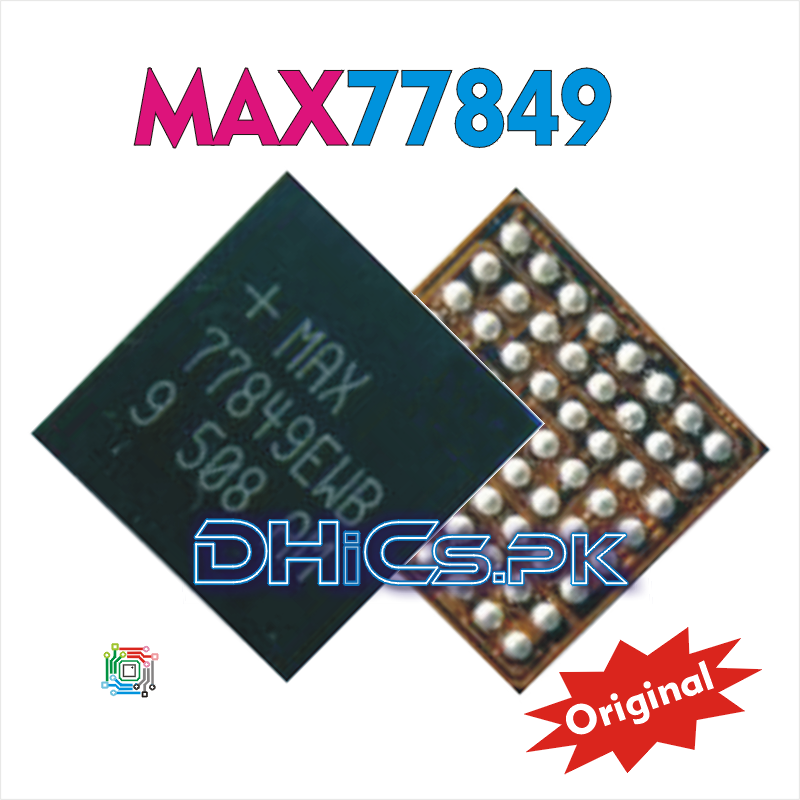

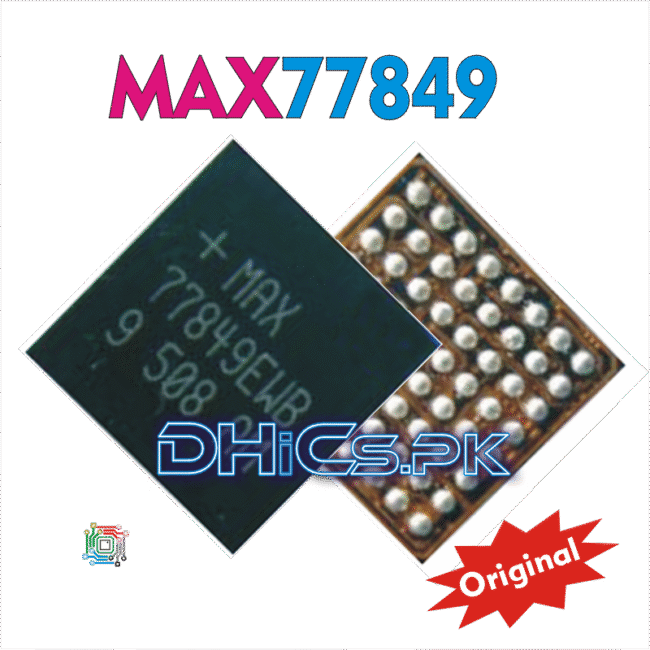

MAX77849 Small Power Charging iC 100% Original iC for Samsung Note4 S6

SKU: SM219
In Stock
 550
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
Other people want this. 2 people have this in their carts right now.

MAX77849 Small Power Charging iC 100% Original iC for Samsung Note4 S6
Samsung Note4 not charging solution iC chip, Dead solution iC MAX77849
Samsung S6 not charging solution iC chip, Dead solution iC MAX77849

Replace or repairing procedure of MAX77849 Small Power Charging iC
Here is a full procedure to replace or repair in easy and best way.

1. Diagnose carefully that your faulty mobile actually in iC fault.

2. And there is no other solution, only replacement of iC chip is a solution.

3. Cover the whole mother board with high intensity heat insulation tape. Grip the board in board catcher normal tight.

4. Apply good quality flux paste on iC chip you want to remove.

5. Apply heat with heat gun or heat station. Do not exceed the heat above 350 degree centigrade.

6. Remove the iC chip when it starting move or slip from its original place.

7. Clean the mother board iC pad with soldering wiCk and with soldering flux.

8. Apply little flux on mother board iC pad.

9. Put original iC bought from DHiCs.PK

10. Apply heat 300 to 350 degree centigrade according to your heat station brand.

11. Heating time one minute to one minute 30 second.

12. After the iC chip is pasted, net cool the mother board about 3 to 5 minutes.

13. Now everything is done. You can fix the mother board and turn on mobile.
